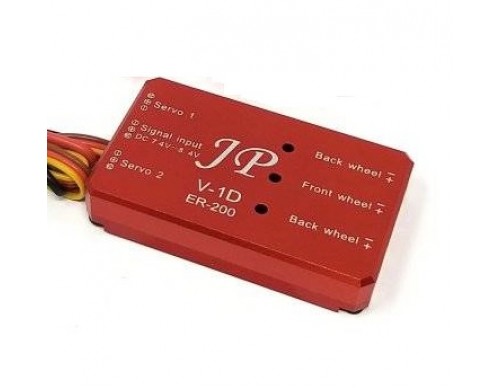

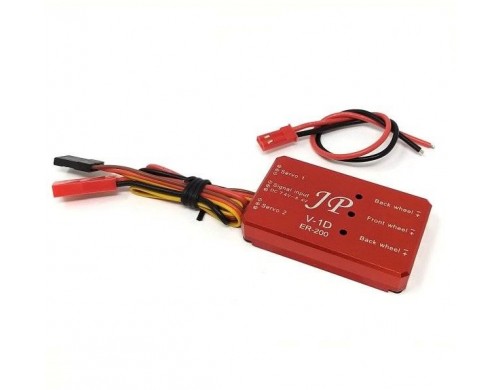

JP Hobby ER-200 Tricycle Electric Retract System Control Box V1 - High Voltage

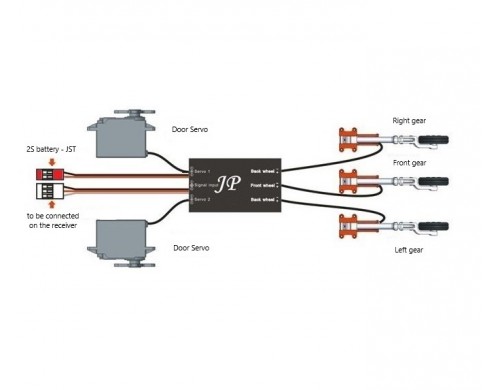

This electronic switch is used to control the sequence of electric retract from your transmitter gear channel switch. It is a replacement control box for the JP Hobby electric retracts.  It will work with both sizes of the JP Hobby retracts.

- Suitable for JP Hobby ER-200 electric retracts landing gear.

- Can be used for JP Hobby tricycles electric retract landing gears system.

- Input voltage: 7.4v to 8.4v (2S Li-Po)

​- Control Box Sizes: 53mm X 32mm X 10mm

​- Control Box Version: V1

​- Weight: 24g

Remark:

V1: Opened gear doors when the landing gear is out
V2: Closed gear doors when the landing gear is out

WARNING: Servos which controlling the gear doors must imperatively be H.V. (High Voltage) type .
