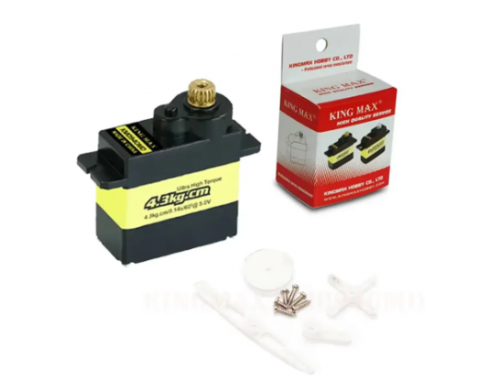

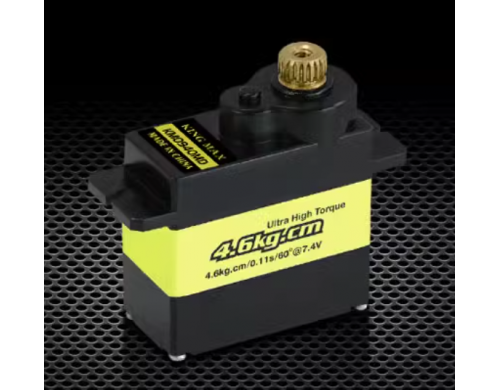

KingMax KM0940MD 13g Mini Digital Metal Gear

Product Code: KM0940MD
Availability: In Stock
US$9.99
Qty: Add to Cart
Estimate Shipping Cost (1 x KingMax KM0940MD 13g Mini Digital Metal Gear)
* Country:
* Region / State:



- Programmable digital mini servo
- High-precision metal gears for smooth action and durability
- High quality brushed motor
- Dead band: 4μs default
- Working frequence: 1520μs/330hz
- Operating Voltage: DC 5.0V - 8.4V
- Operating Speed(5.0V): 0.14sec/60degrees
- Operating Speed(6.0V): 0.12sec/60degrees
- Operating Speed(7.4V): 0.11sec/60degrees
- Operating Speed(8.4V): 0.10sec/60degrees
- Stall torque(7.4V): 4.6kg.cm (63.89oz/in)
- Maximum working torque(7.4V): 2.8kg.cm (38.89oz/in)
- Rated working torque(5.0V): 0.5kg.cm (6.94oz/in)
- Rated working torque(6.0V): 0.8kg.cm (11.11oz/in)
- Rated working torque(7.4V): 1.1kg.cm (15.27oz/in)
- Rated working torque(8.4V): 1.3kg.cm (18.05oz/in)

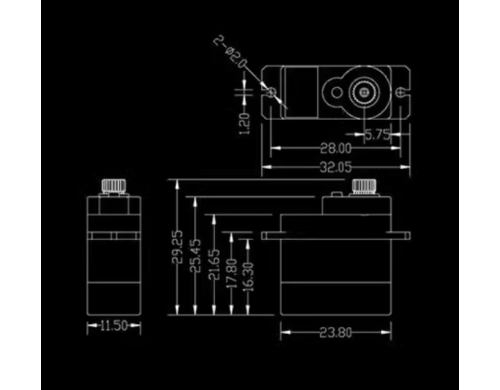

- Dimensions: 23.8mm x 11.5mm x 21.6mm
- Weight: 13g (0.45oz)
- Connector Wire Length:JR 300mm (11.7in)
